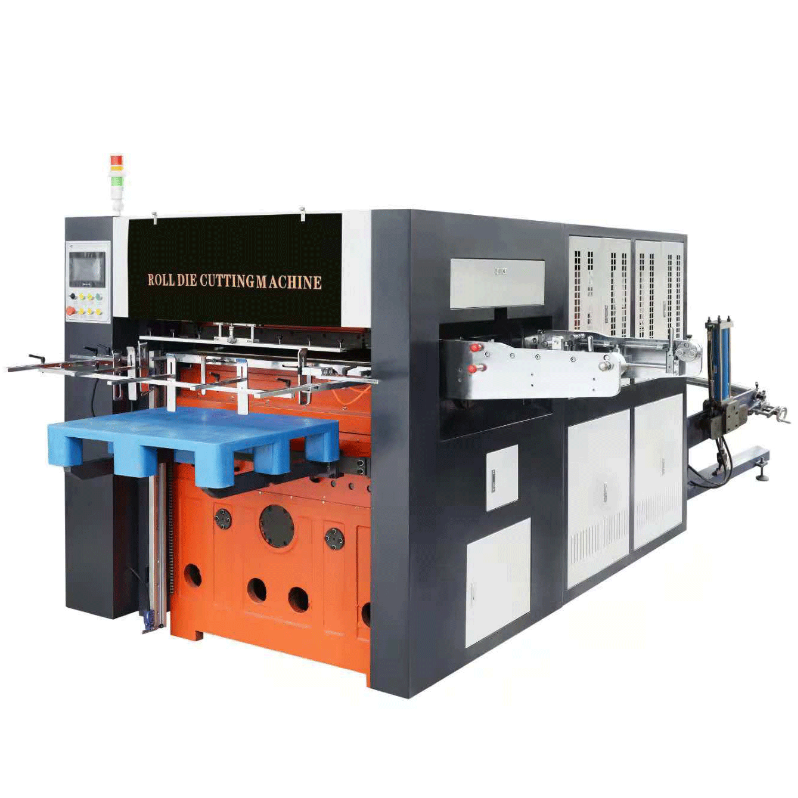

MR-950 Automatic Drum Die Cutting Machine
Using micro-computer and man-machine interface, servo-driven positioning, AC frequency conversion, automatic counting, hand (pneumatic) locking plate, photoelectric correction, electromagnetic clutch, helical gear transmission, concentrated lubrication of thin oil, overload protection and unique rotation mechanism, paper feeding part adopts synchronization to realize paper withdrawal, paper feeding smoothly, accurate positioning, and paper receiving neatly. Imported products are used in all key parts and control systems of the machine. Precision assembly ensures that the machine runs under stable pressure, accurate positioning, smooth movement, safety and reliability.
Main technical parameters:
Die Cutting Accuracy
Model | MR-950 |
± 0.10mm | |
Die cutting speed | 100-160次/分钟 |
Die Cutting Dimension | 950*550mm |
Die-cut | 120-600gsm各类白卡，牛皮纸，压痕纸，瓦楞纸，PVC等 |
Die Cutting Pressure | 250吨 |
Total power of motor | 11kw |
weight | 7000kg |
Gas source | 0.7Mpa, 1.5m³/min |
Machine dimensions | 4000(L)*2100()W*1850(H)mm |
