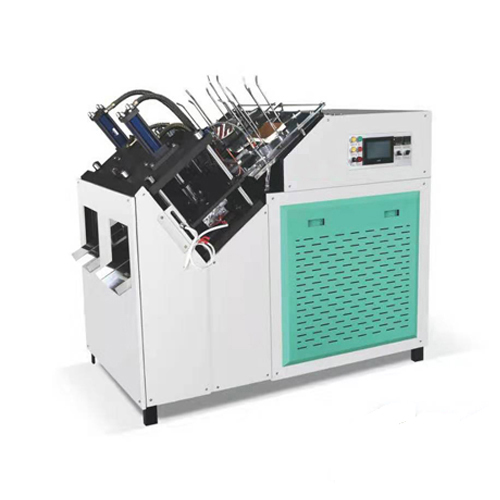

ML-400Y Hydraulic Paper Disk Machine
发布时间：2019-08-19
ML-400Y is a fully automatic hydraulic press. This machine can save half of the labor. It has stable performance and easy operation. Normally, because of structural problems, this machine is not equipped with collection devices, but we can design for customers. The machine can also make paper bowls with a maximum depth of 50mm. Hydraulic oil recovery is adopted to reduce emission pollution and low noise.
Main technical parameters
Model | ML400Y |
Paper size | 4-11英寸 |
Disk size | 深度≤55mm；直径≤300mm（材料展开尺寸） |
Production Speed | 50-75Pcs/min 50-75个/分钟 |
Power requirements | 380V 50HZ |
Total power | 5KW |
weight | 800Kg |
Machine dimensions | 1800×1200×1700mm |
Paper material | 160-1000g/m2(原纸，白板纸，白卡纸，铝箔或其它) |
Air Pressure Request | 工作压力0.5Mpa 工作气量 0.5m3/min |
